PRODUCT Bend Pipes & MISCS Bent pipe  For Professional

Bent pipe price list
It is the bend pipe, which is very convenient for a muffler or the production of the handle bar. It all bends by the efficient pipe vender in its own factory, it processes, and the quality control is also thorough .

Not to mention the performance of the machine, It’s finished in the pipe that the mostly circle is high without being concerned with a point of view by the original knowledge. In addition, It can be corresponded the special order that can change a wide lineup and pipe size or the angle / length that can support various situation. And the convenient parts which is substantial at the time of muffler / handle bar production.

There are many group of parts for the builder / customer form to make their images.
Made in JAPAN
Bent pipe price list
Click here for bent pipe price list. (PDF version)

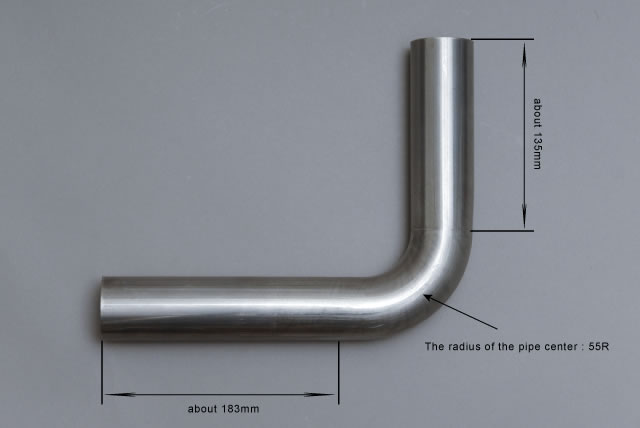

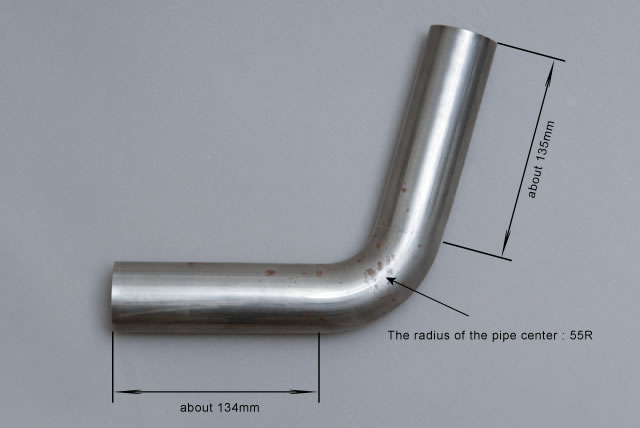

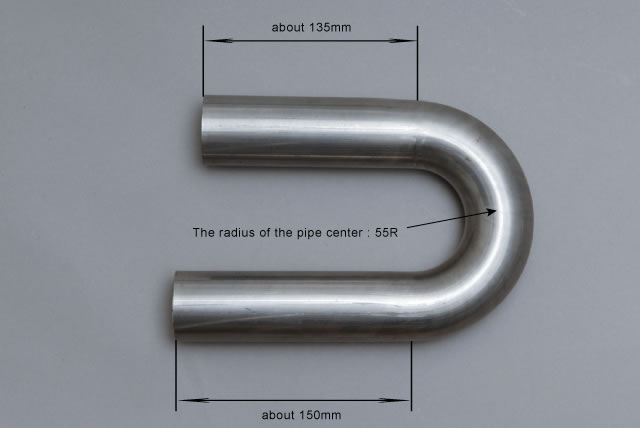

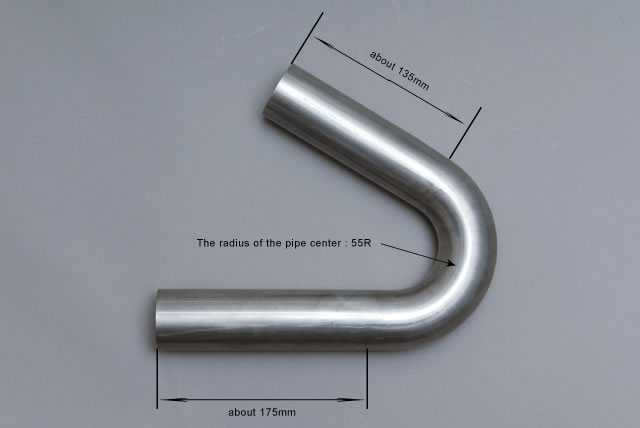

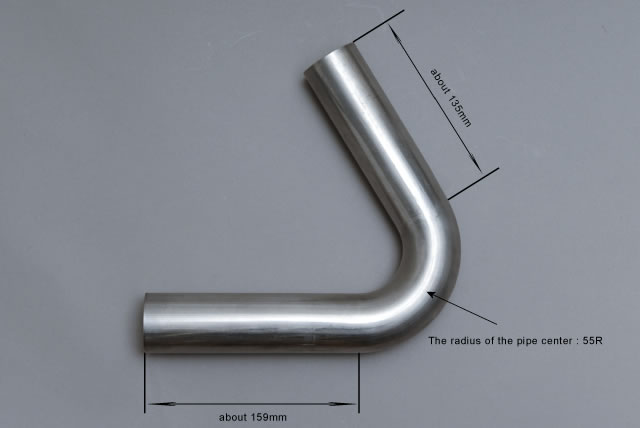

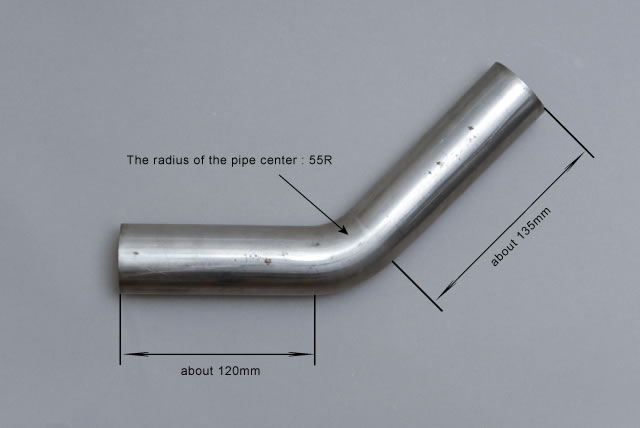

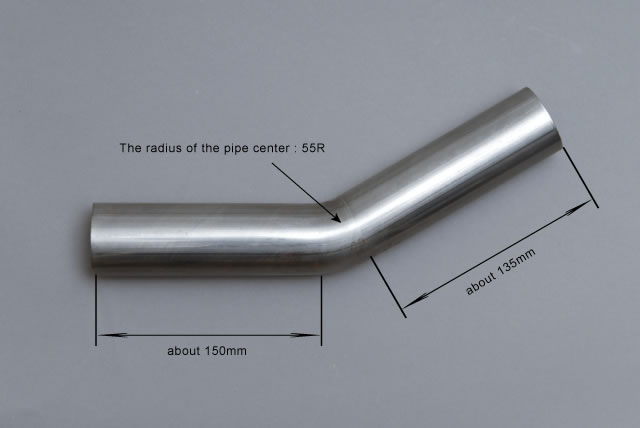

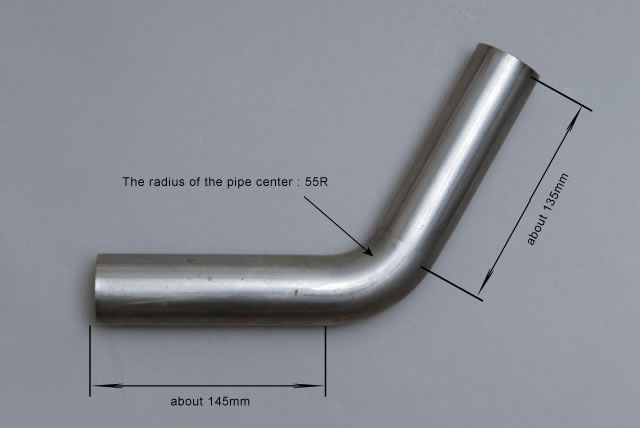

BENDPIPPE - φ45-55R
φ45-55R-30 φ45-55R-45 φ45-55R-60
φ45-55R-75 φ45-55R-90 φ45-55R-120
φ45-55R-150 φ45-55R-180
Click the image for enlargement.

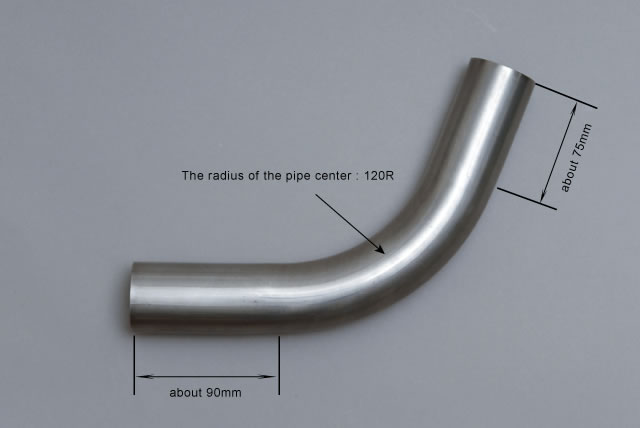

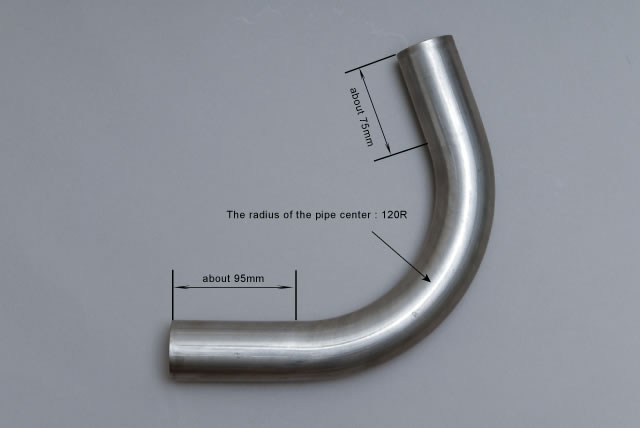

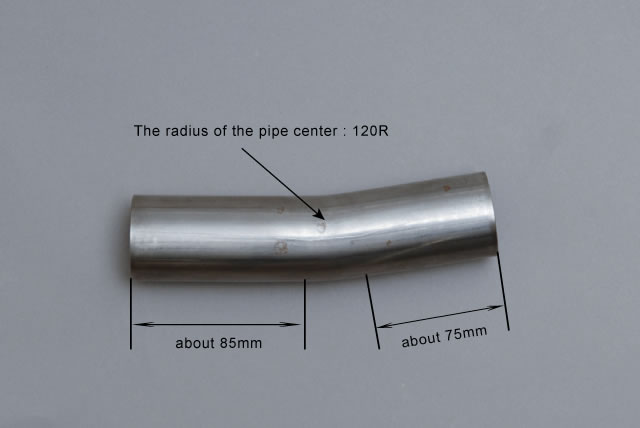

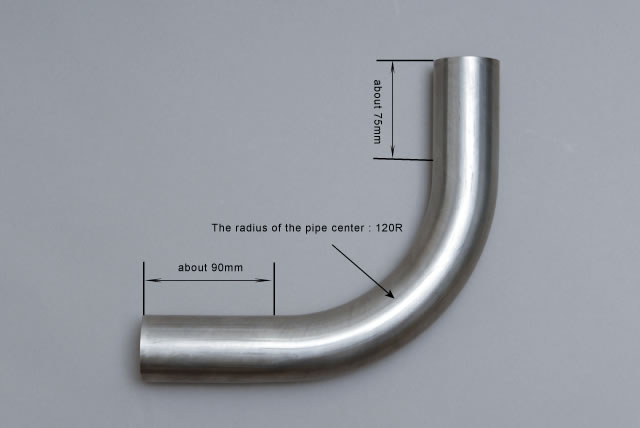

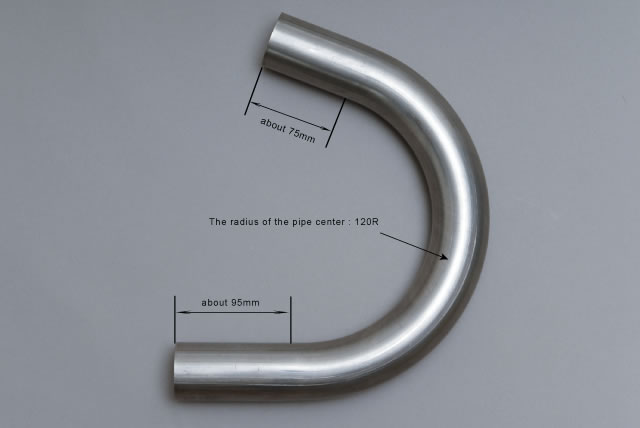

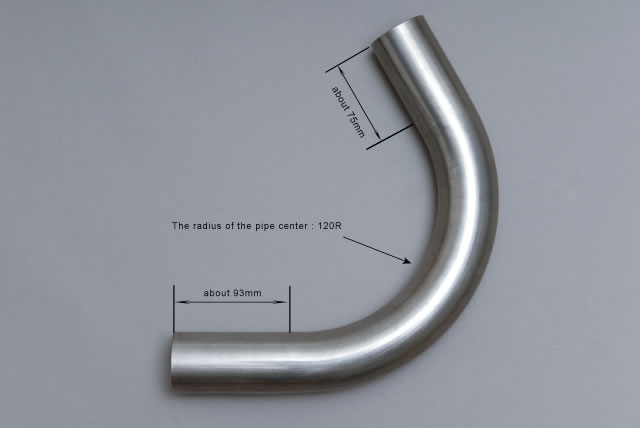

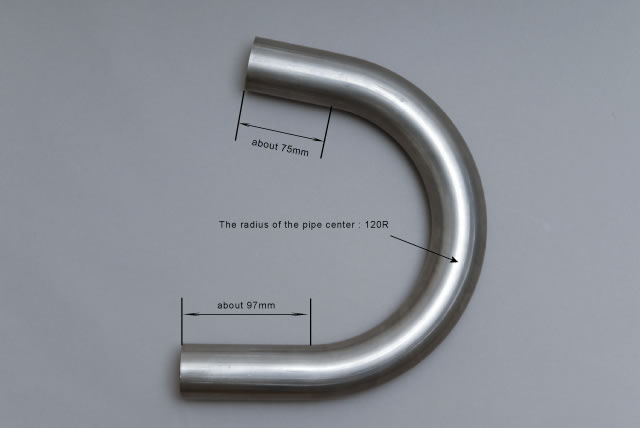

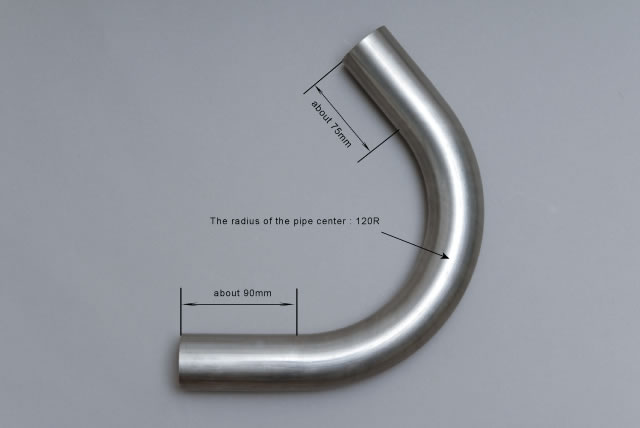

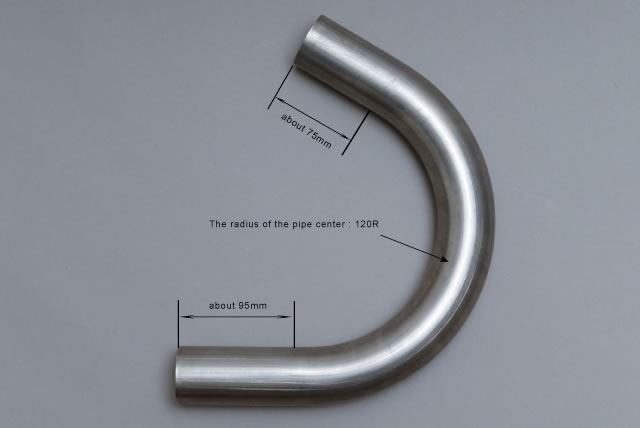

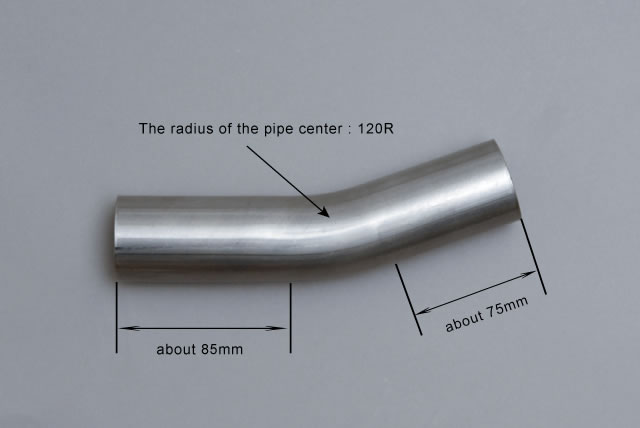

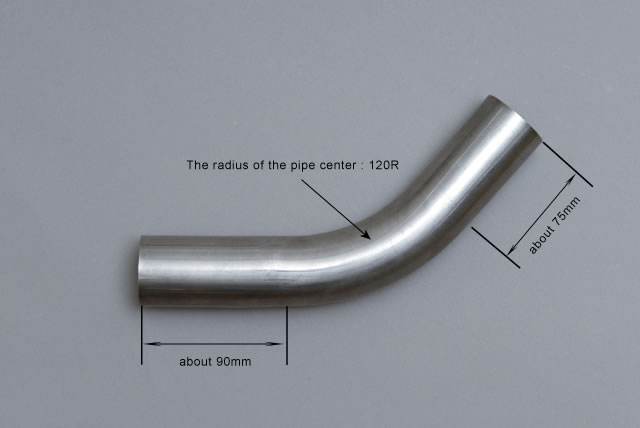

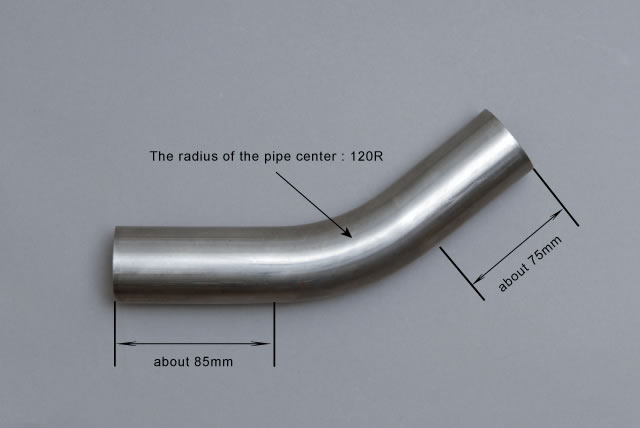

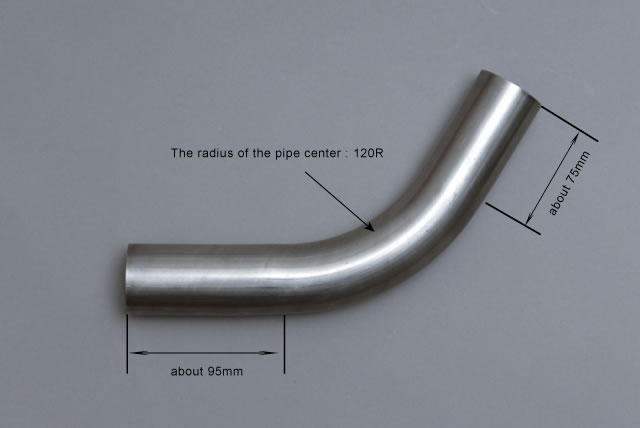

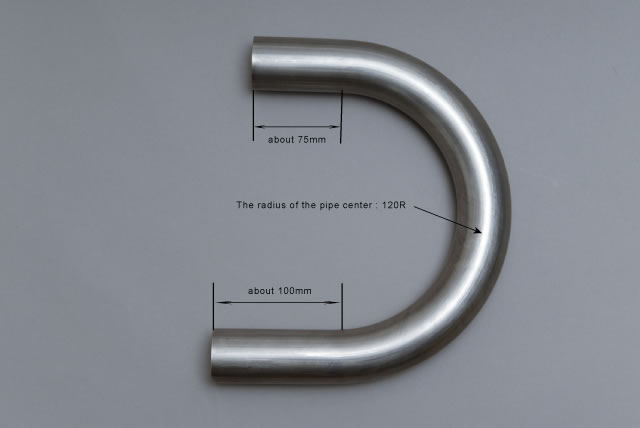

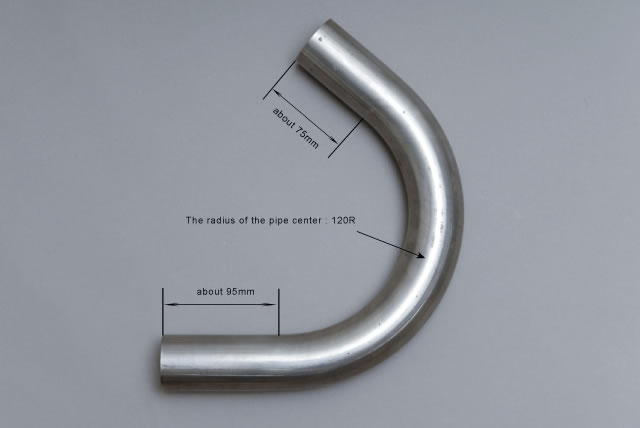

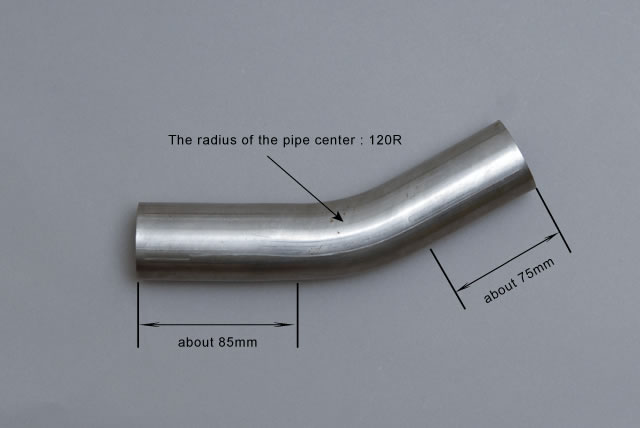

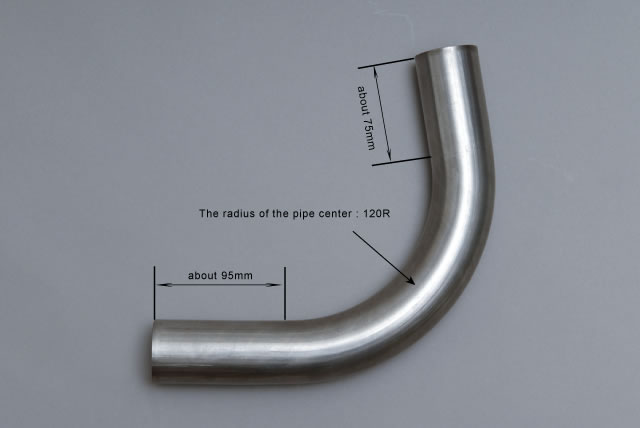

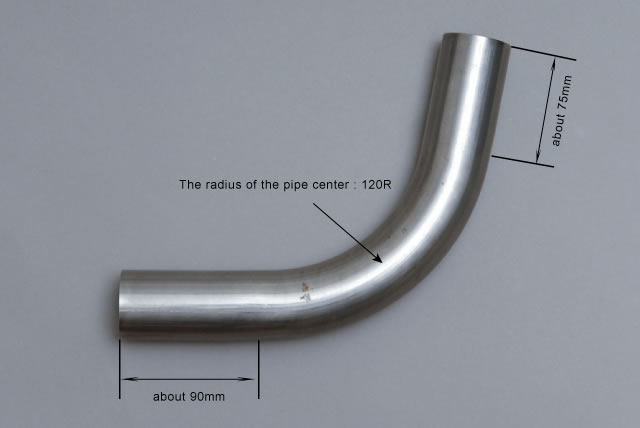

BENDPIPPE - φ45-120R
φ45-120R-10 φ45-120R-20 φ45-120R-30 φ45-120R-40 φ45-120R-50 φ45-120R-60
φ45-120R-70 φ45-120R-80 φ45-120R-90 φ45-120R-100 φ45-120R-110 φ45-120R-120
φ45-120R-130 φ45-120R-140 φ45-120R-150 φ45-120R-160 φ45-120R-180 φ45-120R-180
Click the image for enlargement.

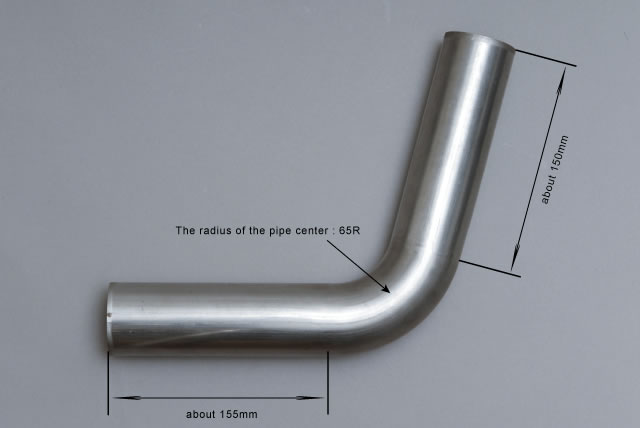

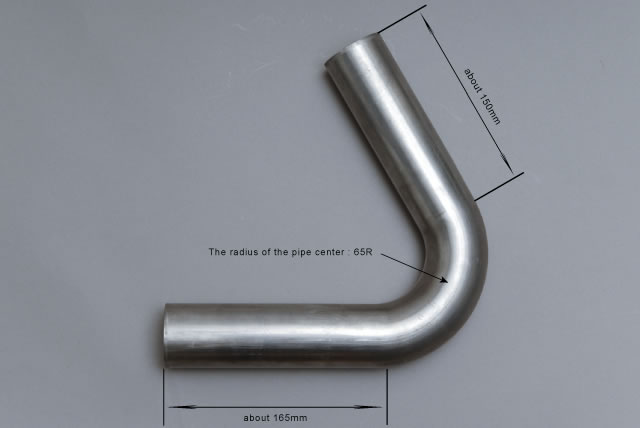

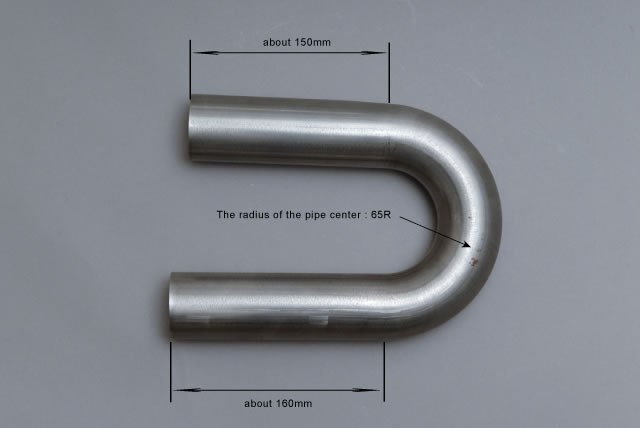

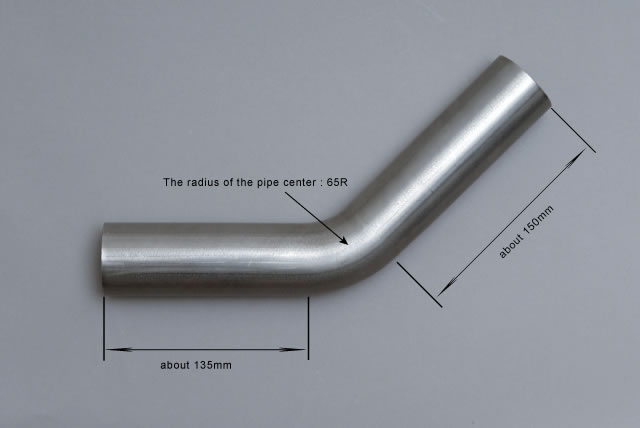

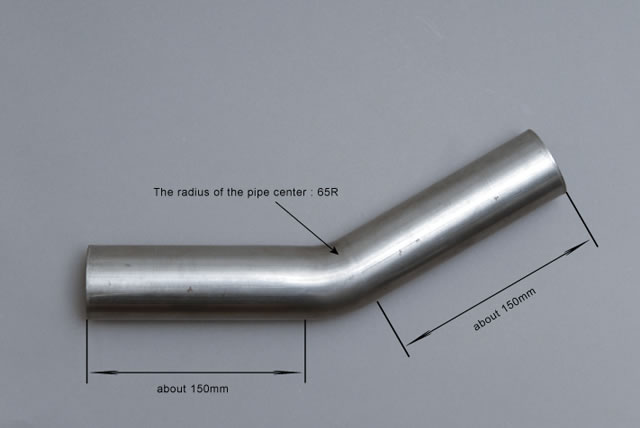

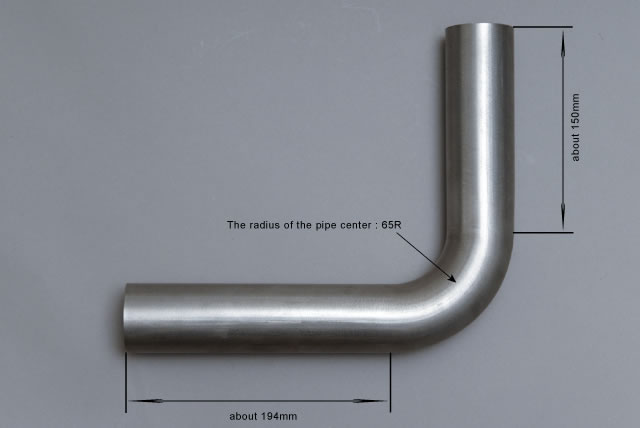

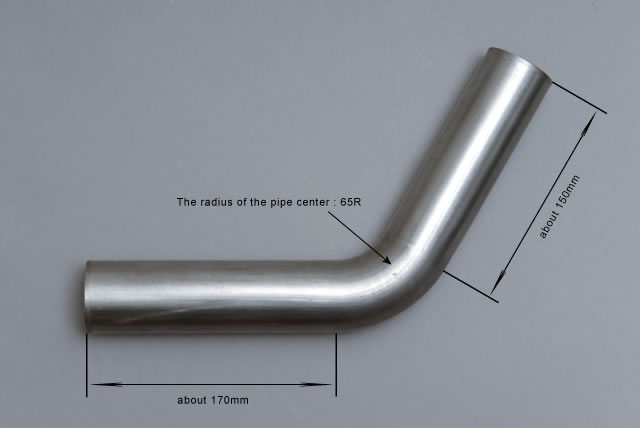

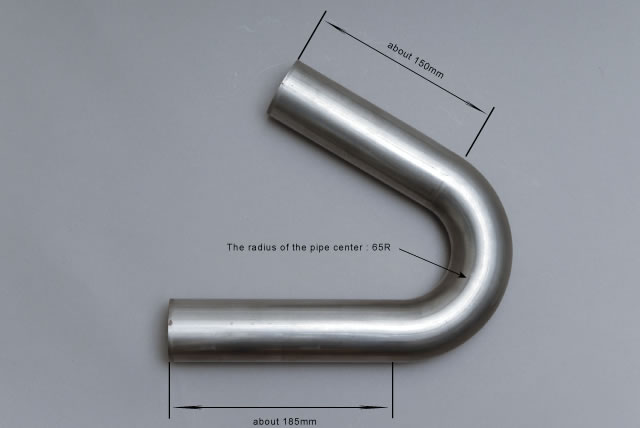

BENDPIPPE - φ50.8-65R
φ50.8-65R-30 φ50.8-65R-45 φ50.8-65R-60 φ50.8-65R-75 φ50.8-65R-90 φ50.8-65R-120
φ50.8-65R-150 φ50.8-65R-180 Click the image for enlargement.

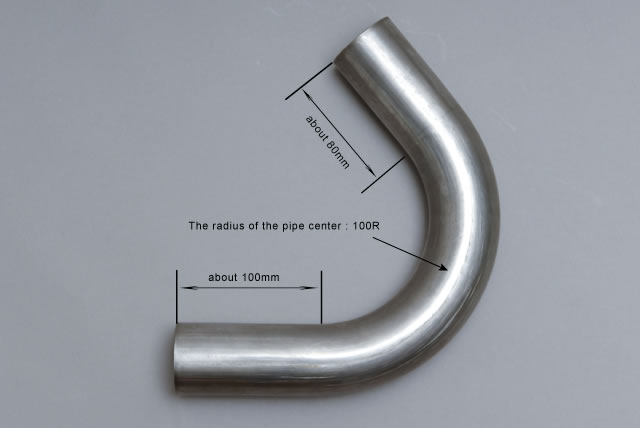

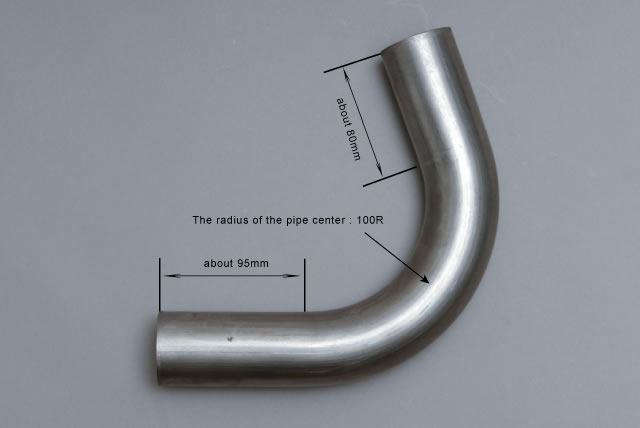

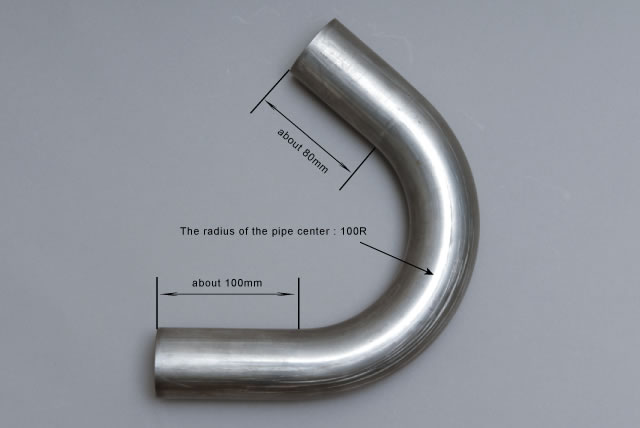

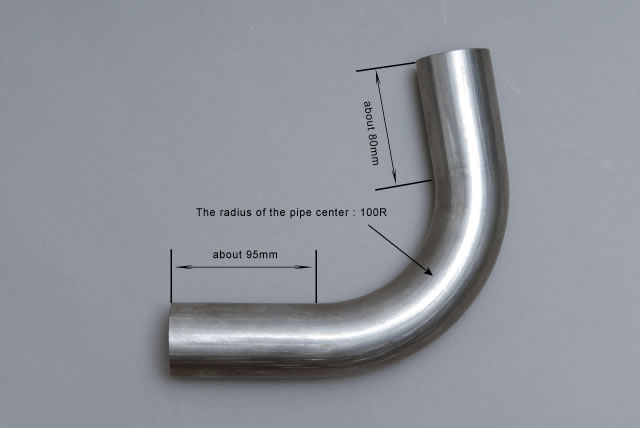

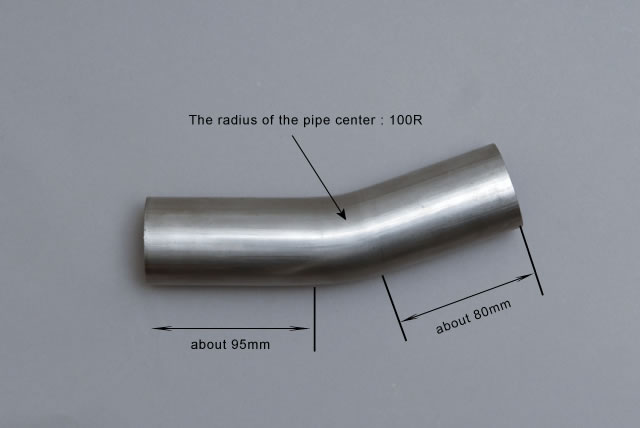

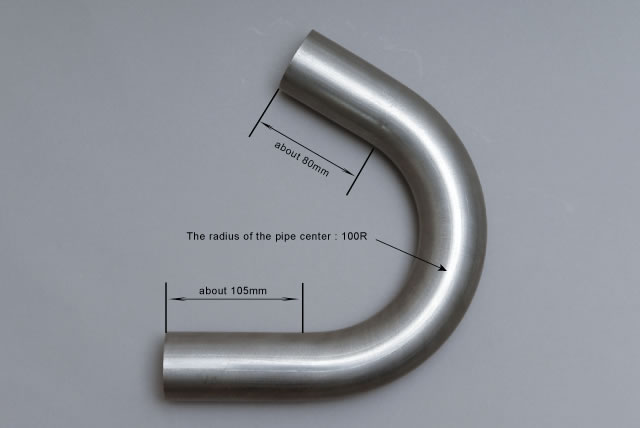

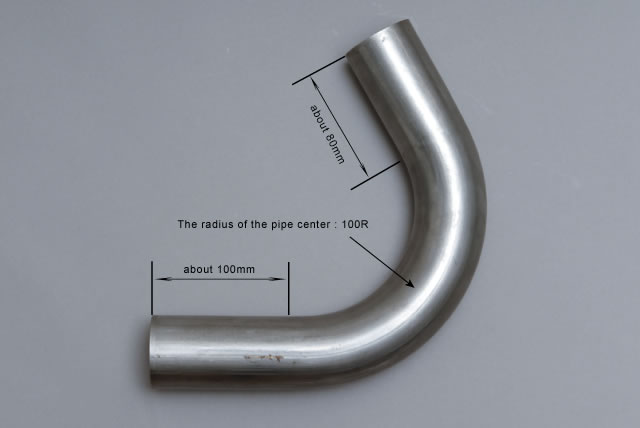

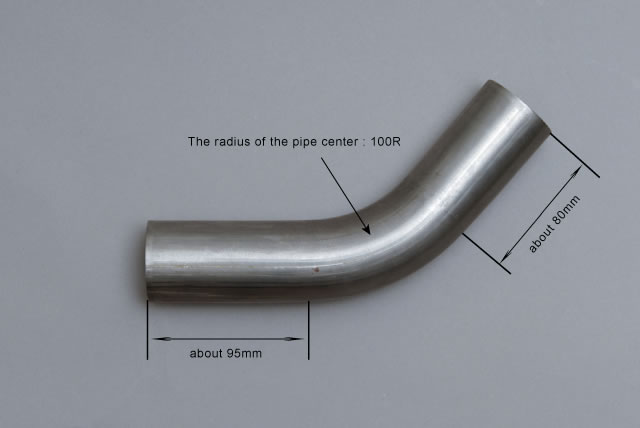

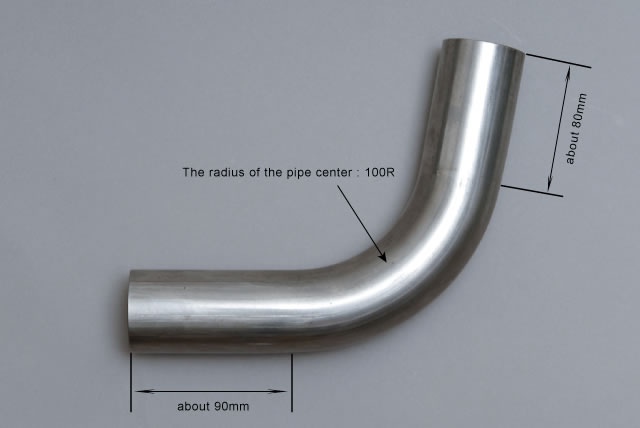

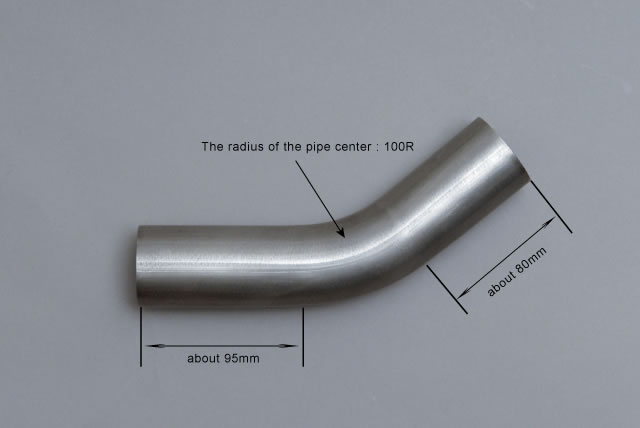

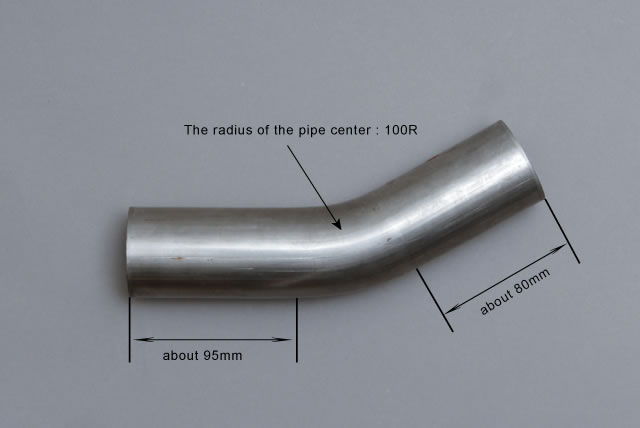

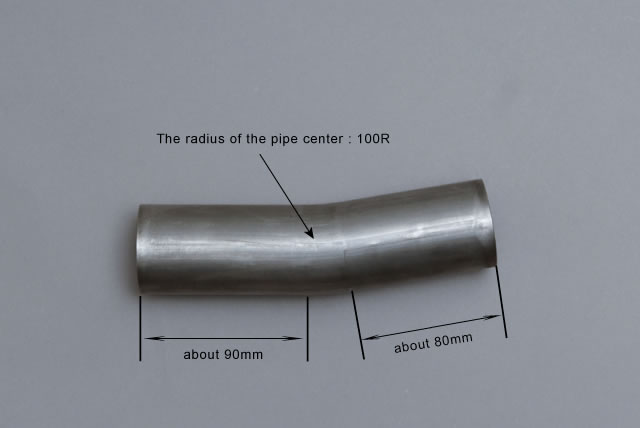

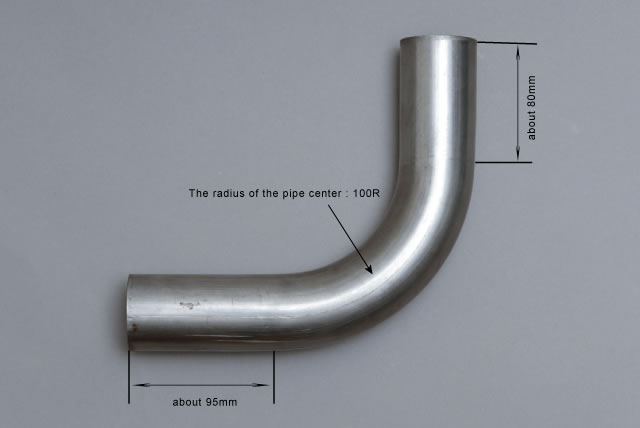

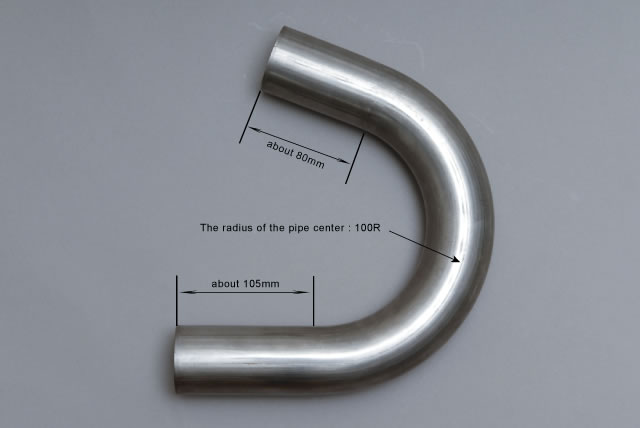

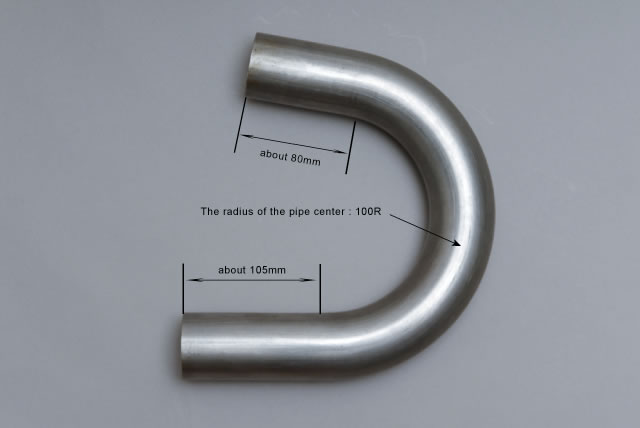

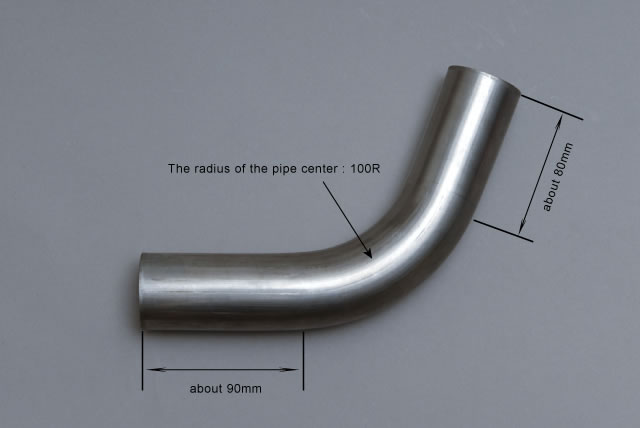

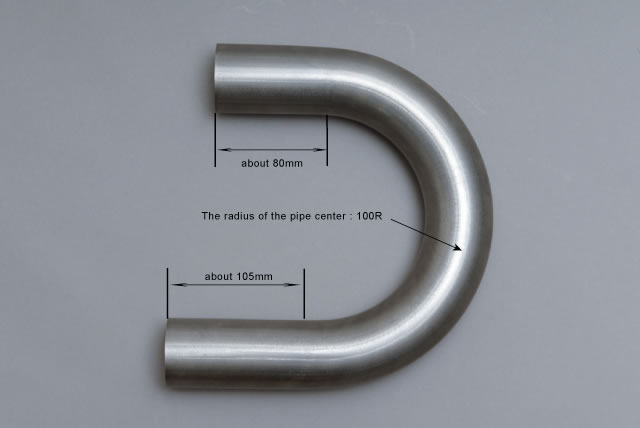

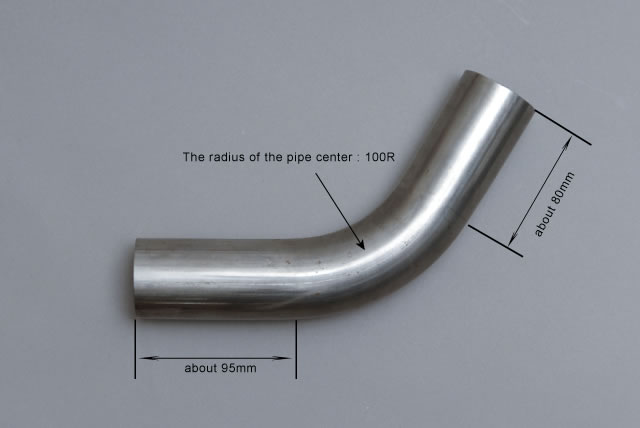

BENDPIPPE - φ50.8-100R
φ50.8-100R-10 φ50.8-100R-20 φ50.8-100R-30 φ50.8-100R-40 φ50.8-100R-50 φ50.8-100R-60
φ50.8-100R-70 φ50.8-100R-80 φ50.8-100R-90 φ50.8-100R-100 φ50.8-100R-110 φ50.8-100R-120
φ50.8-100R-130 φ50.8-100R-140 φ50.8-100R-150 φ50.8-100R-160 φ50.8-100R-180 φ50.8-100R-180
Click the image for enlargement.

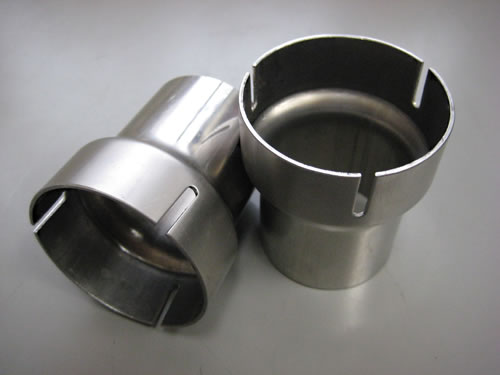

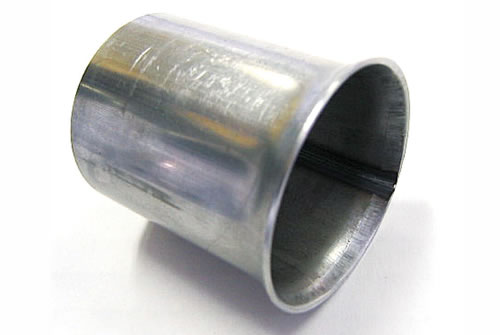

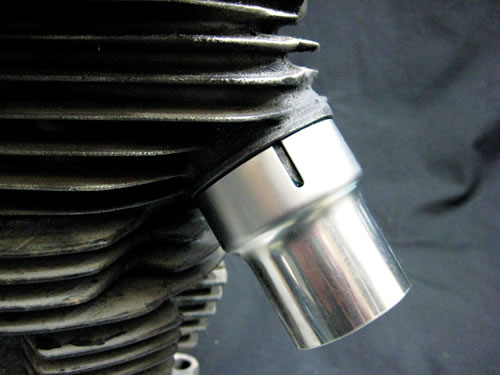

Joint pipe for PAN Head  For Professional
In the case of the muffler production of the pan head, it is a joint pipe to use.
When the band for fixation is tightened by putting the slit in the insertion part to the head by four places, it becomes familiar well, and an excessive tightening torque is not needed for the installation like the two-place slit.
It is firmly installed by assuming the depth of the slit to be 15mm and using it together with our stainless exhaust band (product number 800663).

* Please choose from stainless steel/steel according to the material of the muffler.
* Might of shut when the installed head is thin.
* Please note the tightening torque when you install it.
Made in JAPAN
Click the image for enlargement.
Product # Name of articles Material Retail price U / M
880050 Joint exhaust pipe for PAN HEAD Steel ¥ 1,260 Each
880051 Joint exhaust pipe for PAN HEAD Stainless steel ¥ 2,205 Each

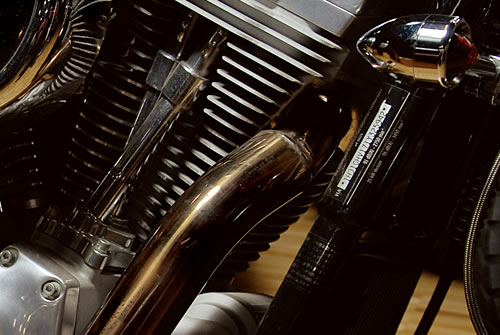

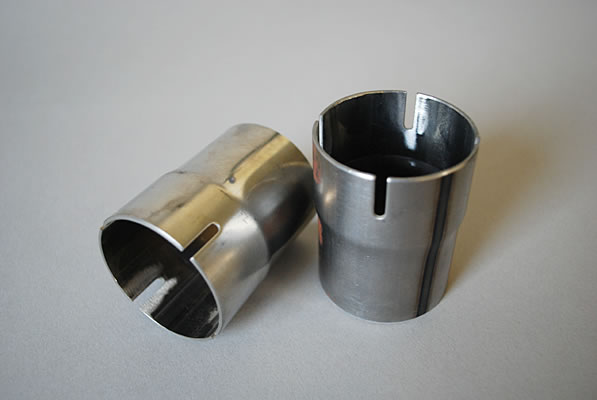

JOINT EXHAUST PIPE for IRON SPORT  For Professional

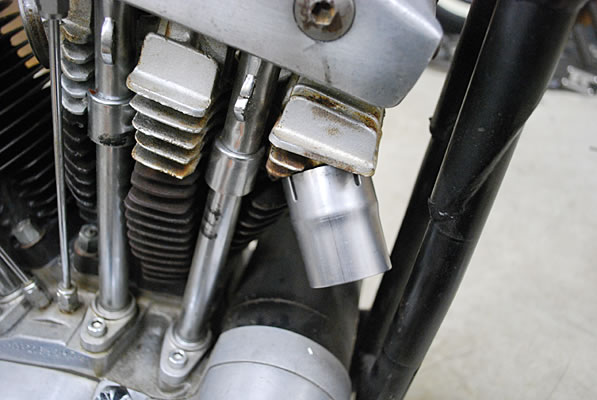

In the case of the muffler production of the Iron sport, it is a joint pipe to use.
When the band for fixation is tightened by putting the slit in the insertion part to the head by four places, it becomes familiar well, and an excessive tightening torque is not needed for the installation like the two-place slit.
It is firmly installed by assuming the depth of the slit to be 13mm and using it together with our stainless exhaust band (product number 800658).
* Please choose from stainless steel/steel according to the material of the muffler.
* Might of shut when the installed head is thin.
* Please note the tightening torque when you install it.
Made in JAPAN
Click the image for enlargement.
Product # Name of articles Material Retail price U / M
880052 Joint exhaust pipe for IRON SPORT Steel ¥ 1,680 Each
880053 Joint exhaust pipe for IRON SPORT Stainless steel ¥ 2,205 Each
JOINT EXHAUST PIPE for IRON SPORT  For Professional
It is exhaust pipe ring that EVO/TWIN CAM uses for the joint to the head when the muffler is produced.
Please choose from stainless steel/steel according to the material of the muffler.
Made in JAPAN
Click the image for enlargement.
Product # Product name Material Retail price U / M
880442 EVO ring Steel ¥ 1,260 Each
880443 EVO ring Stainless steel ¥ 1,575 Each

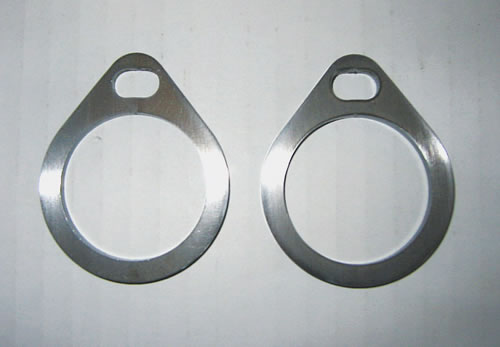

SHOVEL Flange for Welding On  For Professional


Click the image for enlargement.
It is a flange that the shovel uses when the muffler is produced.
It processes by the laser, and it curves, and it is a thing without whether/ collar and after the installation, the shake corner of about the right and left 5° Muffler can be adjusted by doing to the length hole of the installation bolt hole of the muffler.

* It supports pipe external form φ 45.
* Please choose from stainless steel/steel according to the material of the muffler.
Made in JAPAN
Product # Product name Material Retail price U / M
880440 Shovel flange Steel(4.5t) ¥ 1,680 Each
880441 Shovel flange Stainless steel(5t) ¥ 2,205 Each

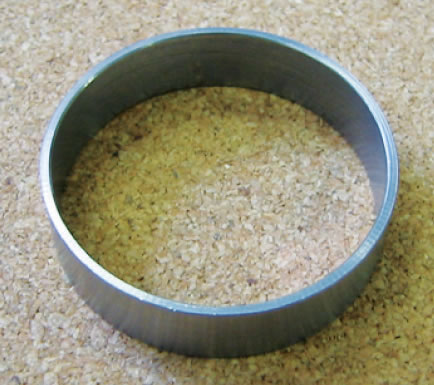

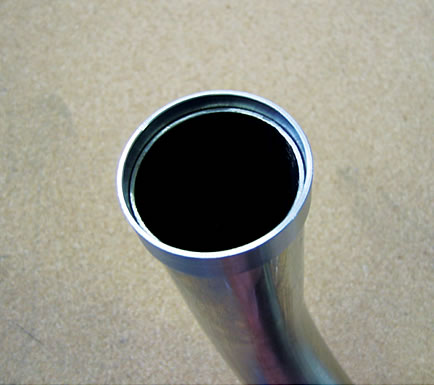

EVO RING FOR WELDING ON  For Professional
It is exhaust pipe ring that EVO/TWIN CAM uses for the joint to the head when the muffler is produced.
Please choose from stainless steel/steel according to the material of the muffler.
Made in JAPAN
Click the image for enlargement.
Product # Product name Material Retail price U / M
880442 EVO ring Steel ¥ 1,260 Each
880443 EVO ring Stainless steel ¥ 1,575 Each

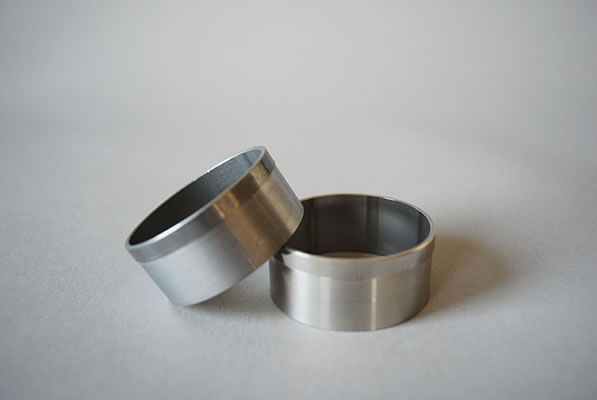

JOINT PIPE  for KNUCKLE HEAD  For Professional


Click the image for enlargement.
Joint Pipe for Knuckle Head
※Exhaust side pipe 44.4mm (1-3/4 inch suitable)
Made in JAPAN
Product # Product name Material Retail price U / M
880446 JOINT PIPE for KNUCKLE HEAD Steel ¥ 1,050 Each
880447 JOINT PIPE for KNUCKLE HEAD Stainless steel ¥ 1,260 Each

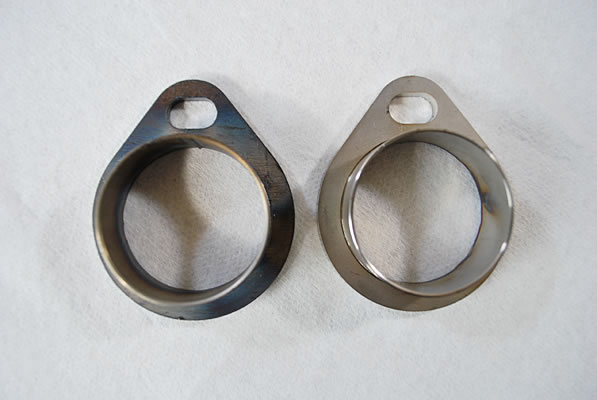

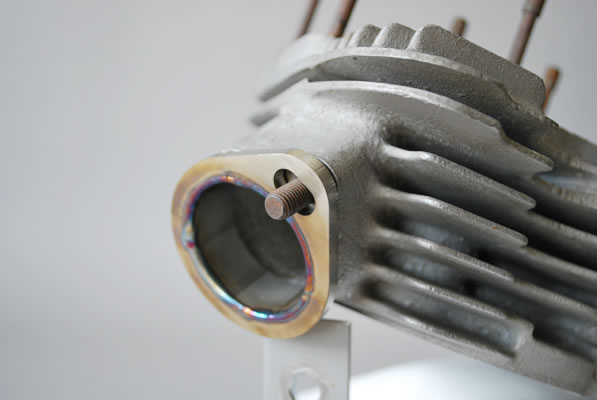

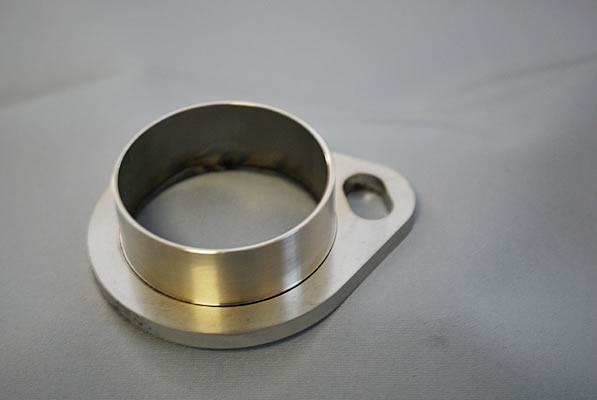

SHOVEL FLANGE TYPE2 for WELDING ON
It is a flange that the shovel uses when the muffler is produced.
* Please choose from stainless steel/steel according to the material of the muffler.
Made in JAPAN
SHOVEL FLANGE TYPE2 for WELDING ON SHOVEL FLANGE TYPE2 for WELDING ON  SHOVEL FLANGE TYPE2 for WELDING ON
Click the image for enlargement.
Product # Product name Material Retail price U / M
880448 SHOVEL FLANGE TYPE2 for WELDING ON Steel ¥ 2,730 Each
880449 SHOVEL FLANGE TYPE2 for WELDING ON Stainless steel ¥ 3,465 Each

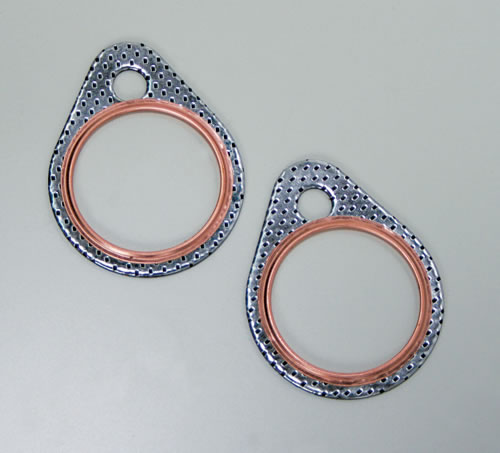

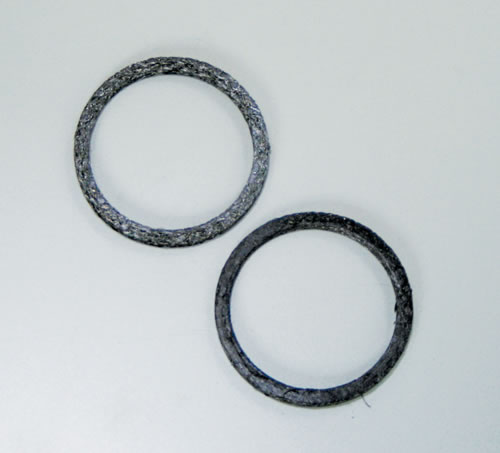

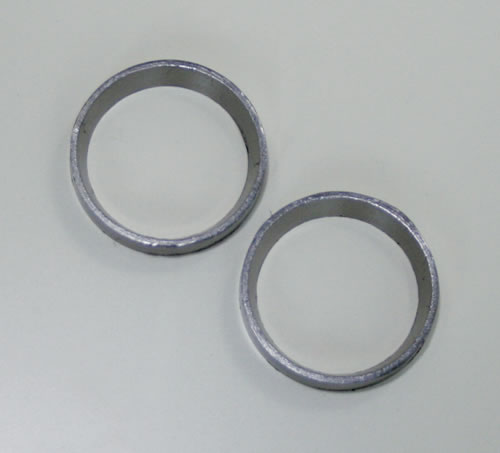

GASKET
The gasket used when the muffler production and exchanging it was variously prepared by the model type.
It is an original gasket that used the high-quality material suitable for each usage.
Please use it by all means when you exchange it.
EX gasket for shovel head EX gasket for earlier period of EVO  EX gasket for last part of EVO
Click the image for enlargement and more details.
EX gasket for shovel head EX gasket for earlier period of EVO EX gasket for last part of EVO
Product # Product name Retail price U / M
880590 EX gasket for shovel head ¥ 1,260 Pair
881590 EX gasket for earlier period of EVO ¥ 1,050 Pair
882590 EX gasket for last part of EVO ¥ 1,365 Pair

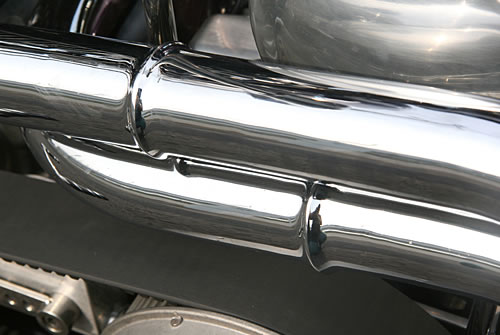

Joint pipe  For Professional

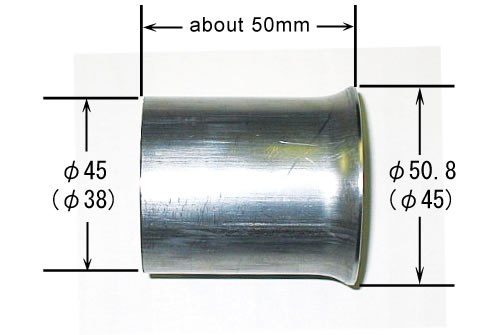

It is the spread pipe which is convenient when you convert pipe size into φ 45 to φ 50.8 and φ 38 to φ 45.
The production of the image of the exhaust pipe of a twin cam with the pipe of φ50.8 like the third picture, and the image can do various processings as use like the fourth picture etc. It is depending on the idea.
Please choose from stainless steel/steel according to the material and the size of the muffler.
Made in JAPAN

Click the image for enlargement.
Product # Product name Material of bracket Size Retail price U / M
850052 Spread pipe Steel φ45→φ50.8 ¥ 1,260 Each
850057 Spread pipe Stainless steel φ45→φ50.8 ¥ 1,575 Each
850053 Spread pipe Steel φ38→φ45 ¥ 1,260 Each
850058 Spread pipe Stainless steel φ38→φ45 ¥ 1,575 Each

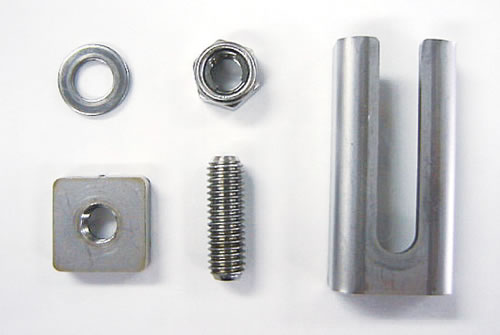

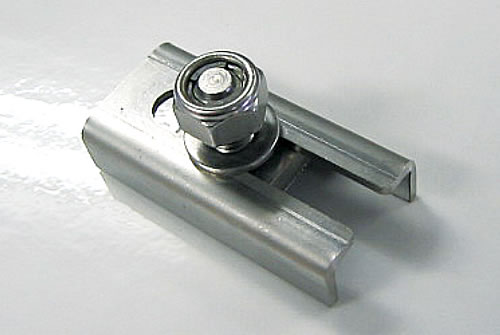

Muffler Bracket for Welding On  For Professional
There is free position degree when stay is installed by making the stay installation part a slide type, and very convenient to make a muffler stay. The bracket is used in the muffler, and after it welds, and the stud bolt is adjusted to arbitrary length, it welds and it uses for the square nut as T bolt.

Please choose from stainless steel/steel according to the material of the muffler.
Made in JAPAN
Click the image for enlargement.
Product # Product name Material of bracket Retail price U / M
880444 Weld on muffler stay Steel ¥ 2,100 Kit
880445 Weld on muffler stay Stainless steel ¥ 2,100 Kit

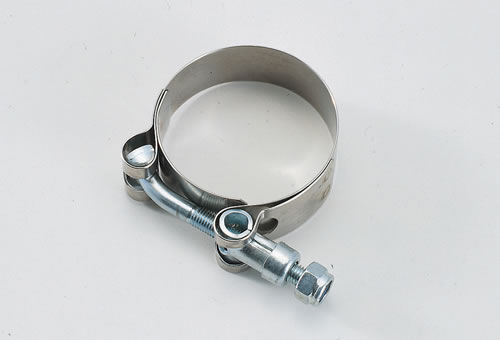

STAINLESS EXHAUST BAND
It is the heavy-duty exhaust band, which is adopted a lot in the American famous maker.

Click the image for enlargement.
Product # Product name Size Retail price
800656 An exhaust band φ38~φ41 ¥ 1,260
800658 An exhaust band φ41~φ47 ¥ 1,260
800660 An exhaust band φ44~φ50 ¥ 1,260
800663 An exhaust band φ49~φ55 ¥ 1,260
800666 An exhaust band φ54~φ60 ¥ 1,260
800669 An exhaust band φ58~φ65 ¥ 1,260
800673 An exhaust band φ65~φ72 ¥ 1,260
800677 An exhaust band φ71~φ79 ¥ 1,260
